Common Repairs

To The Rescue!

To help avoid long waits for expensive engineered repair details, Barrette Structural Distribution has developed repair details for the most common field situations. TRIFORCE floor truss repair details are simple and do not require removal or replacement of an entire joist. Common materials and techniques can be easily used by framers on-site. These details are available free-of-charge here.

Download all
Zip File size:4 MB

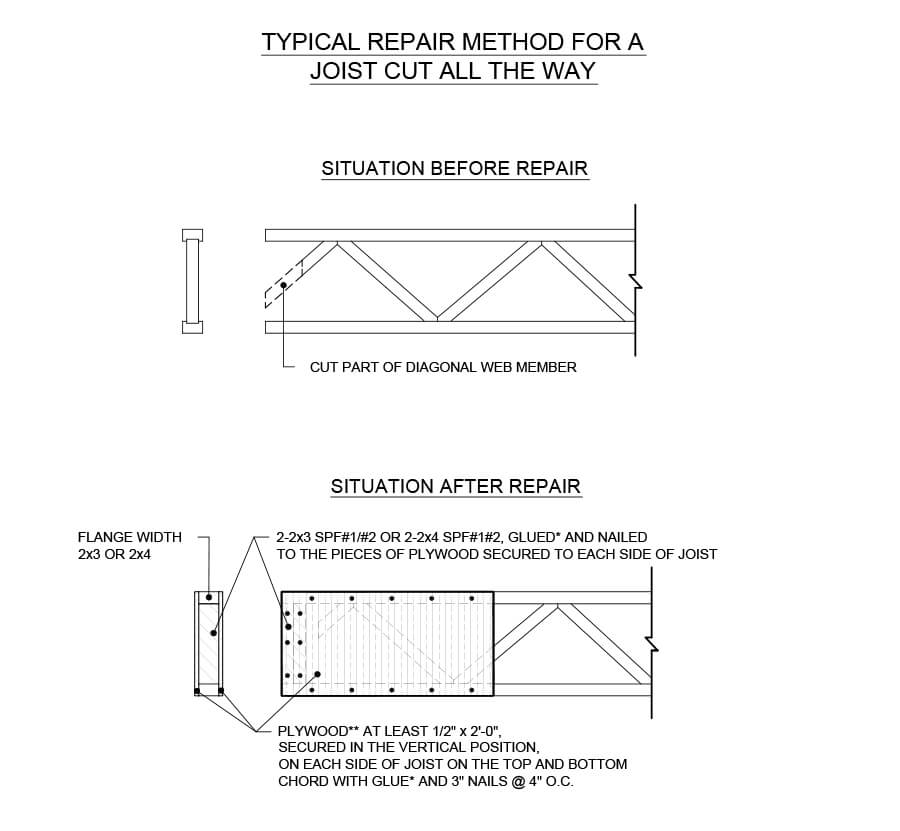

RTF-001-20 – Joist cut all the way

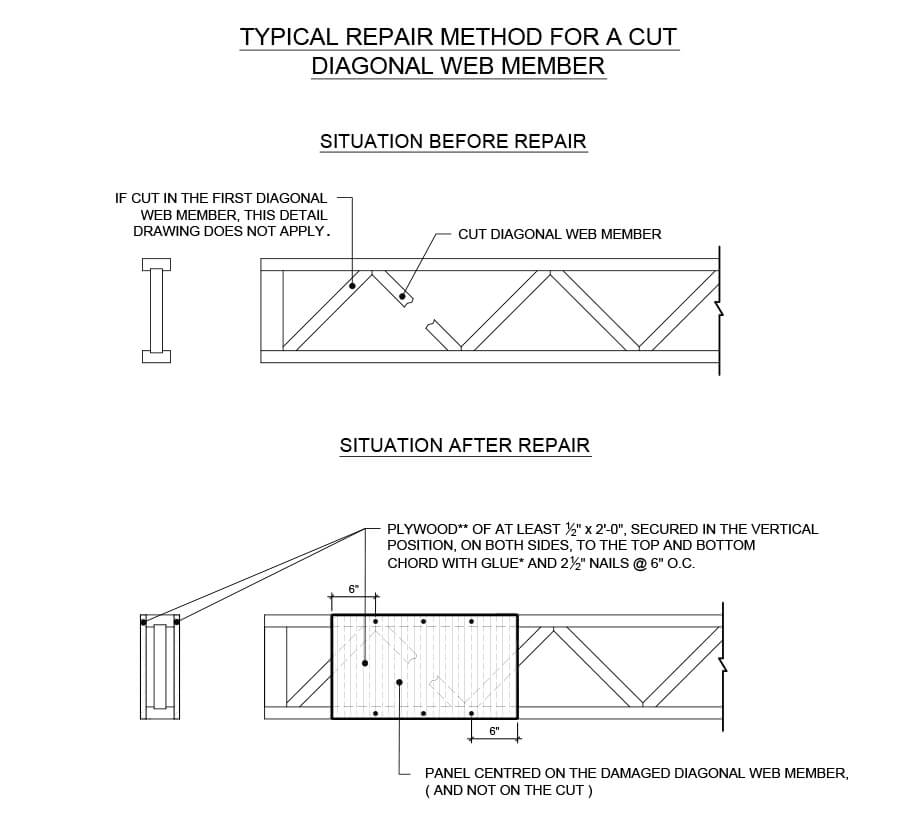

RTF-002-20 – Cut diagonal web member

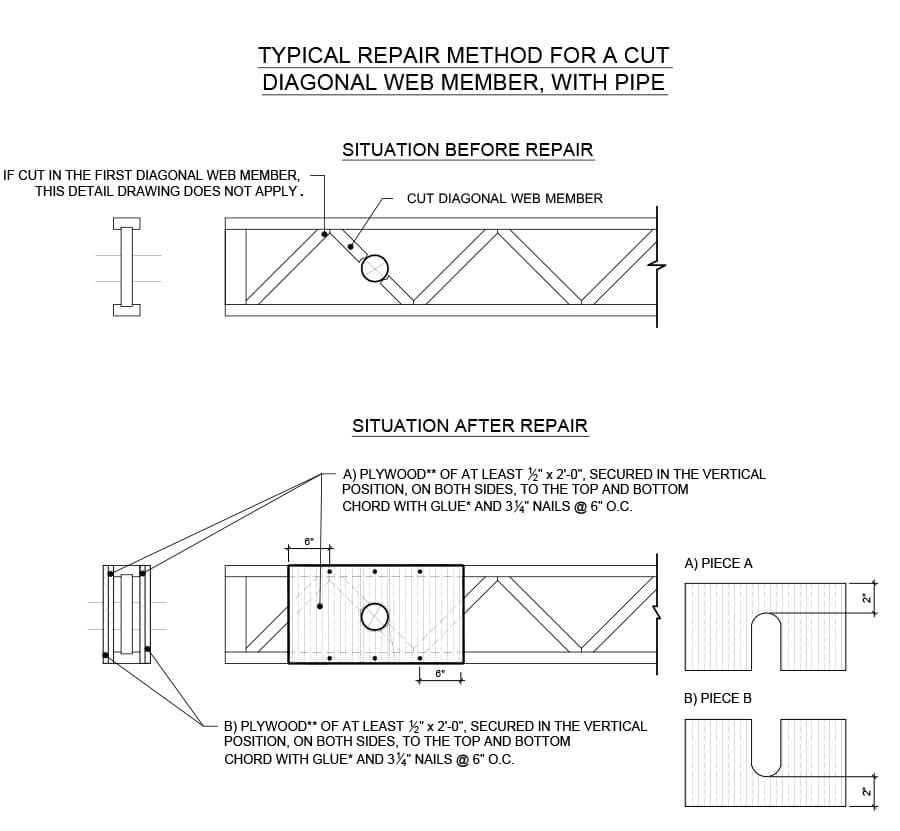

RTF-003-20 – Cut diagonal web member, with pipe

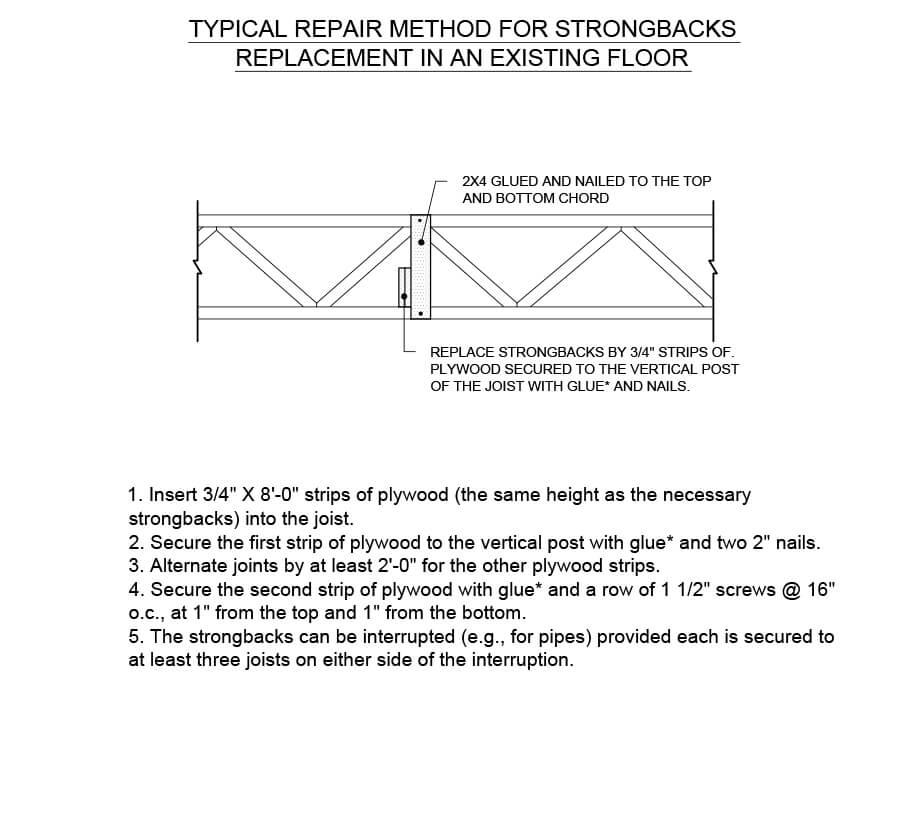

RTF-004-20 – Strongbacks replacement in an existing floor

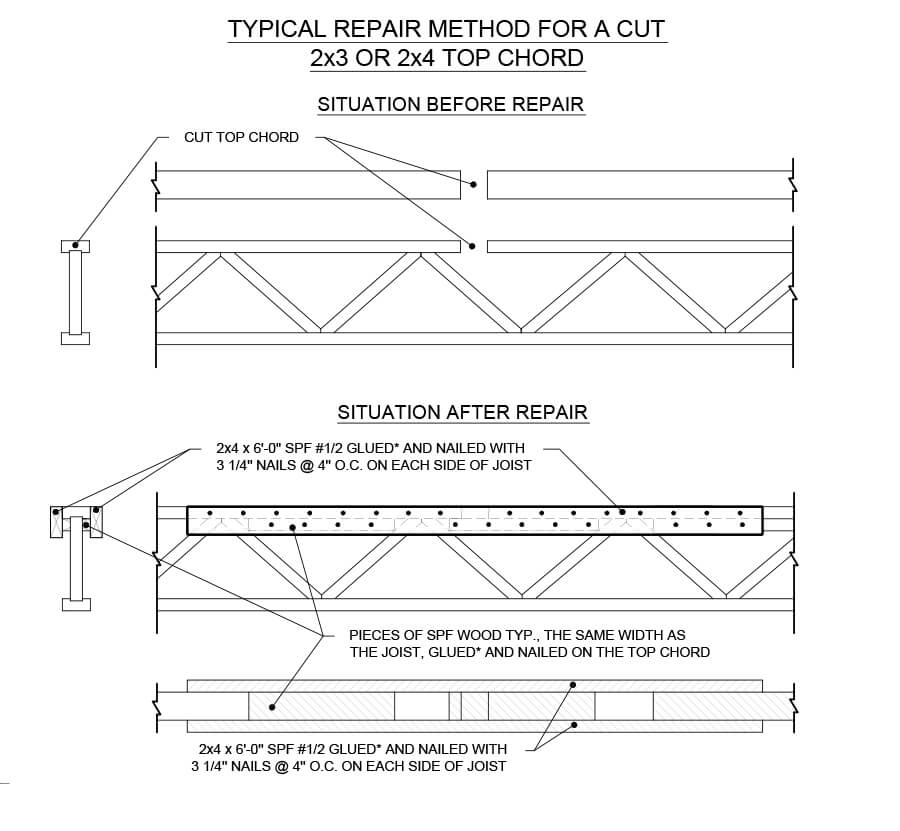

RTF-005-20 – Cut 2×3 or 2×4 top chord
RTF-006-20 – Notched 2×3 or 2×4 top chord, less than half the width, with a pipe

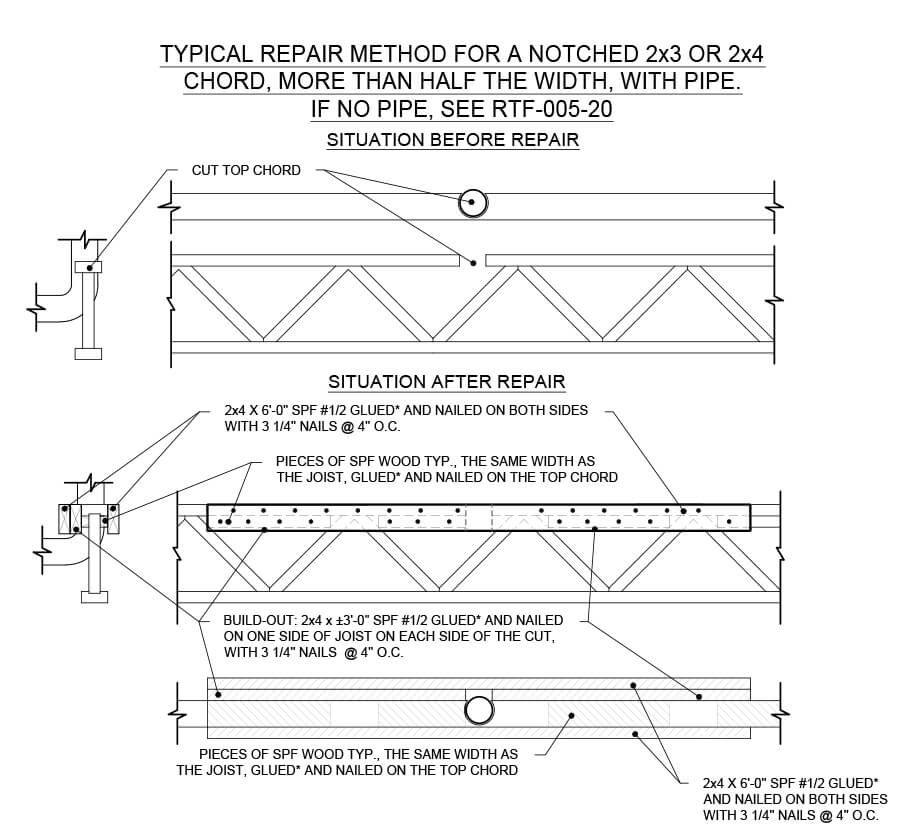

RTF-007-20 – Notched 2×3 or 2×4 chord, more than half the width, with a pipe

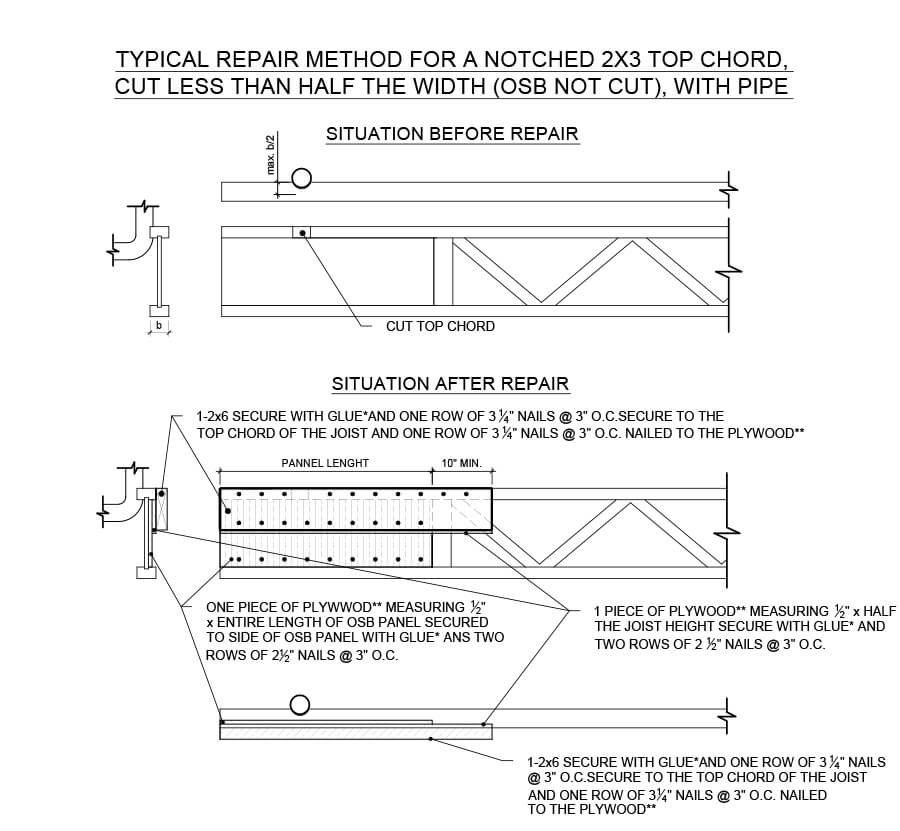

RTF-008-20 – Notched 2×3 top chord, cut less than half the width (OSB not cut), with pipe

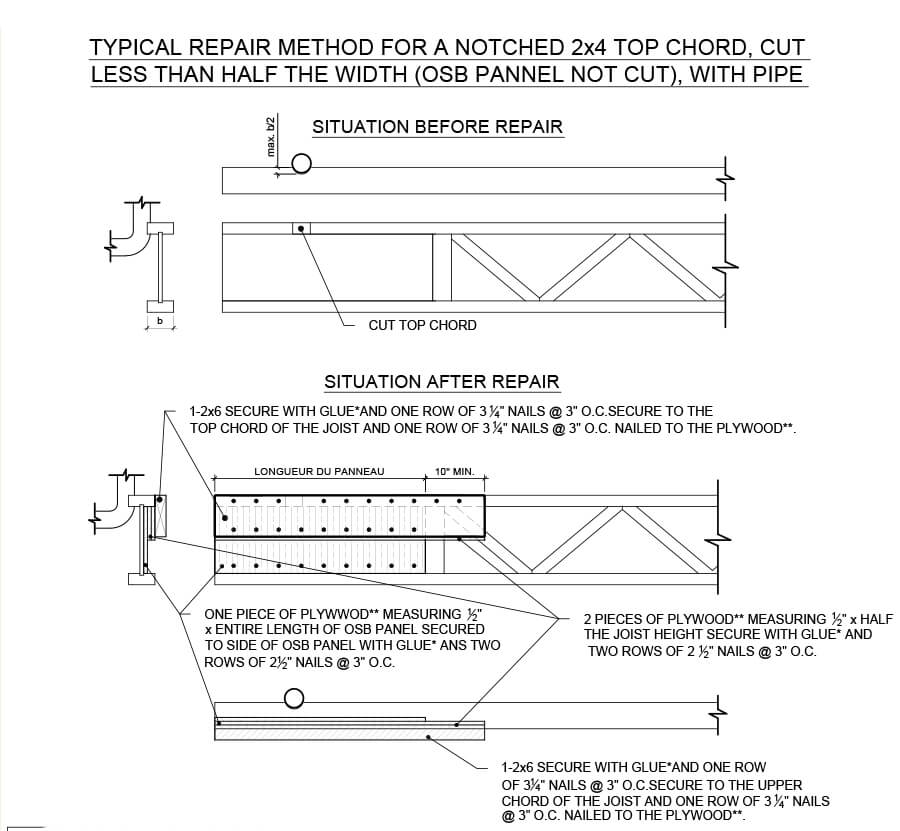

RTF-009-20 – Notched 2×4 top chord, cut less than half the width (OSB pannel not cut), with pipe

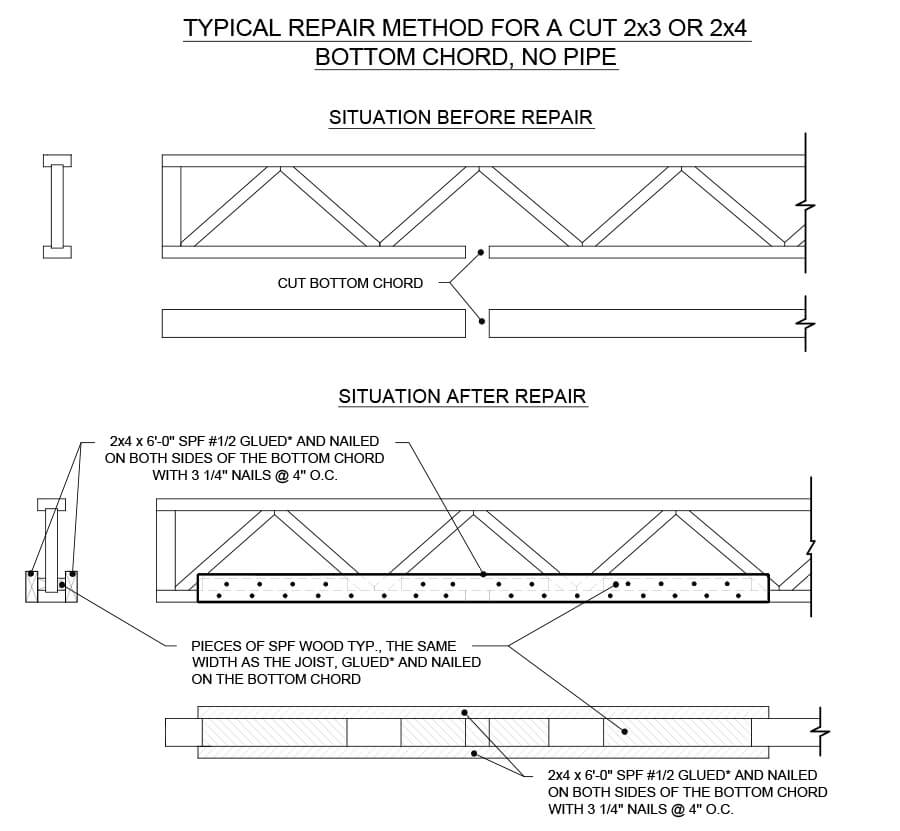

RTF-012-20 – Cut 2×3 or 2×4 bottom chord, no pipe

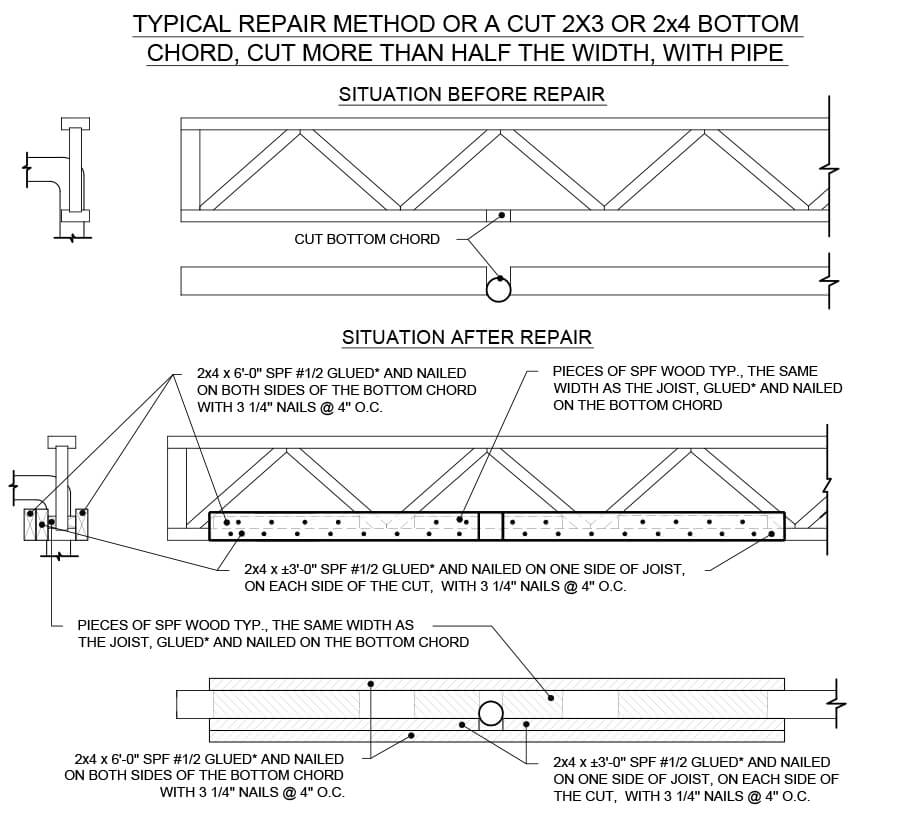

RTF-013-20 – Cut 2×3 or 2×4 bottom chord cut more than half the width, with pipe

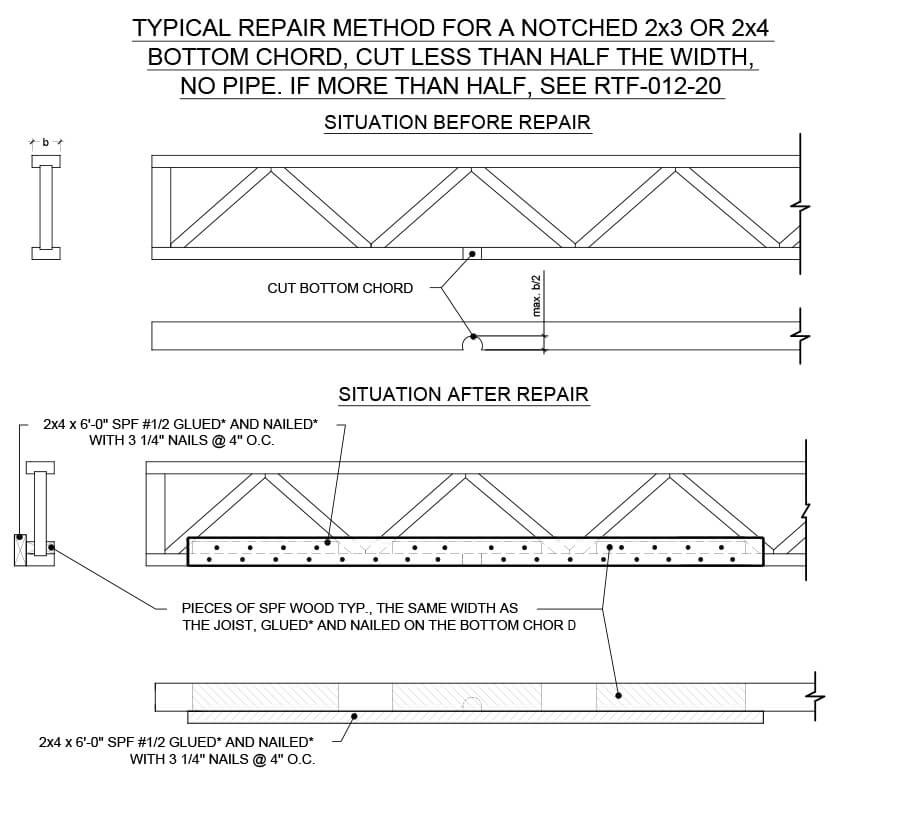

RTF-014-20 – Notched 2×3 or 2×4 bottom chord, cut less than half the width, no pipe

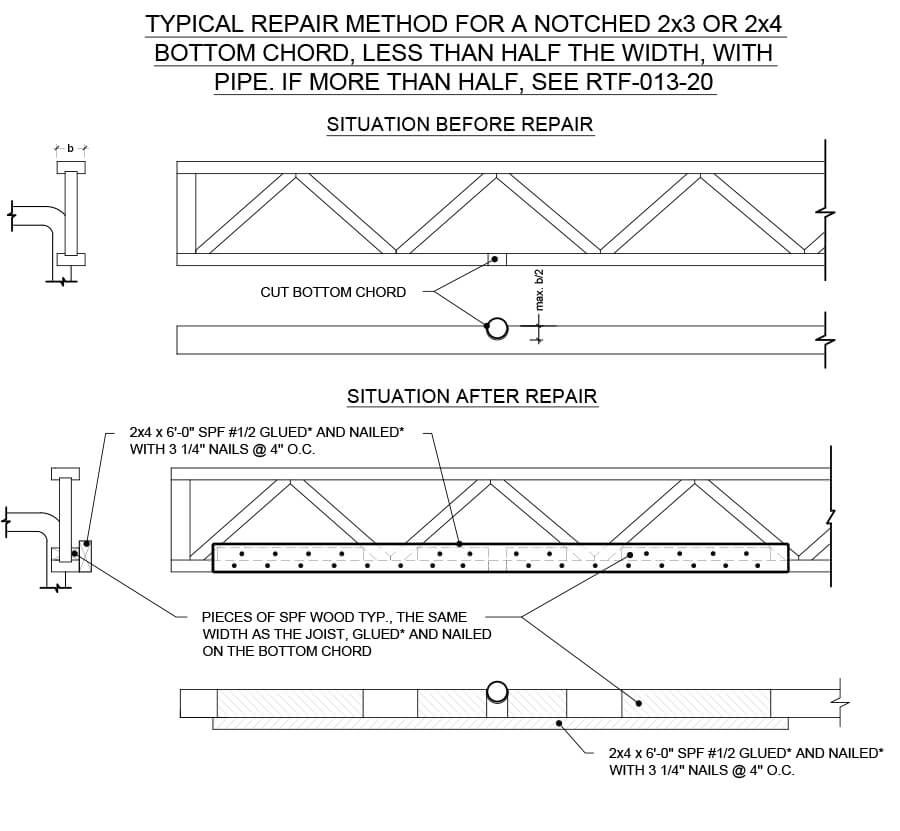

RTF-015-20 – Notched 2×3 or 2×4 bottom chord, less than half the width, with pipe

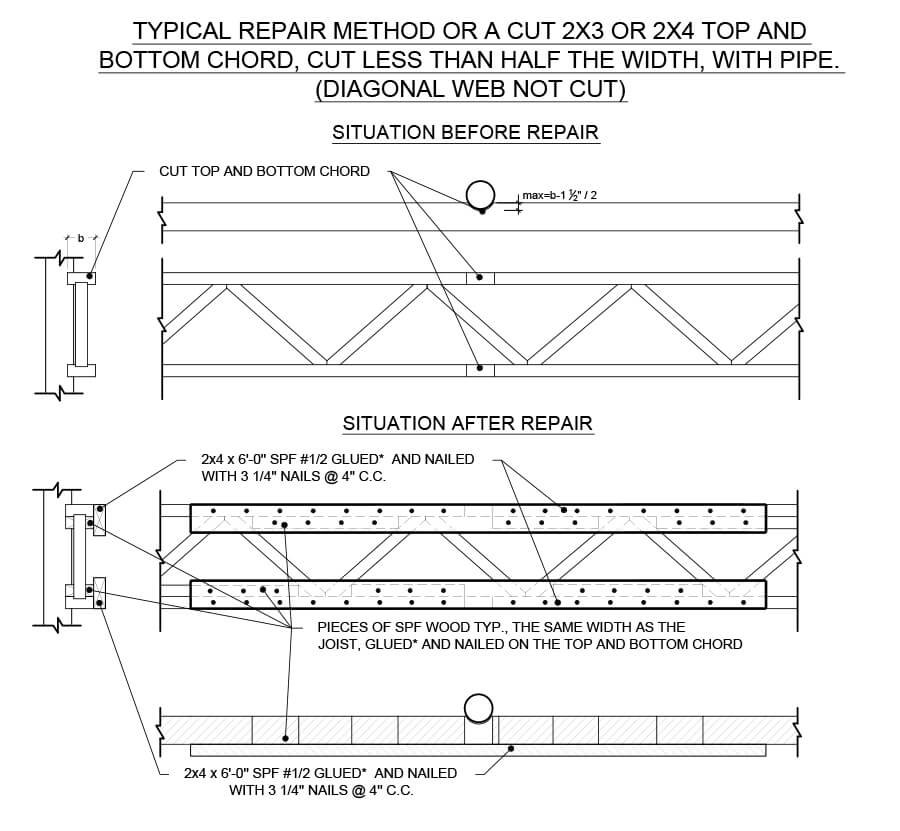

RTF-016-20 – Cut 2×3 or 2×4 top and bottom chord, cut less that half the width, with pipe

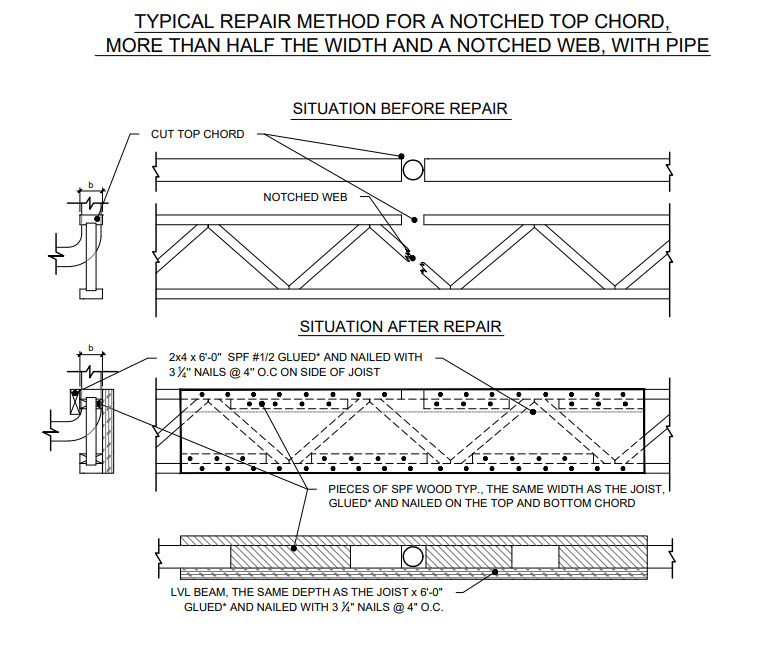

RTF-017-20 – Nothched top chord, more than half the width and a notched web, with pipe

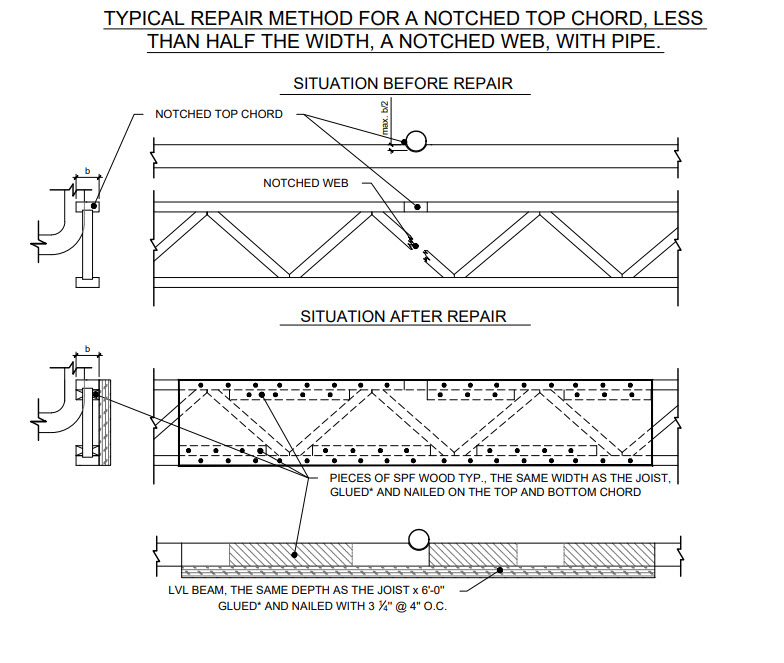

RTF-018-20 – Nothched top chord, less than half the width, a notched web, with pipe
